DTSC-100 Sensing Cable Data Sheet

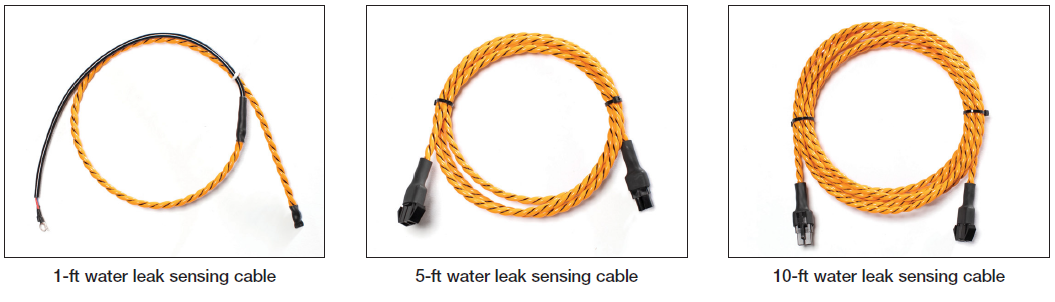

The DTSC-100 Sensing Cable comes in three lengths: 1ft, 5ft, and 10ft. The 5 and 10' lengths can be daisy chained to extend the cable. Sensing cable can be connected to a sensor or valve controller to extend the sensing are of the device it is connected to.
Applications
- HVAC units
- Raised floors
- Chillers and chiller rooms
- Boilers
- Room perimeters
- AND MORE
Features
- Rugged HDPE polymer construction
- Water resistant mating connectors
- Plenum rated
- Extendable from 1' - 100'
- Flexible helical design
Benefits
- Detects water anywhere along its length
- Easy expansion of a wireless sensor or valve controller
- Polymer construction resists corrosion
- Easy to install in tight or hard-to-reach areas
- Dries quickly so cable can be reused after a leak event
You can download the data sheet in the attachment section below
